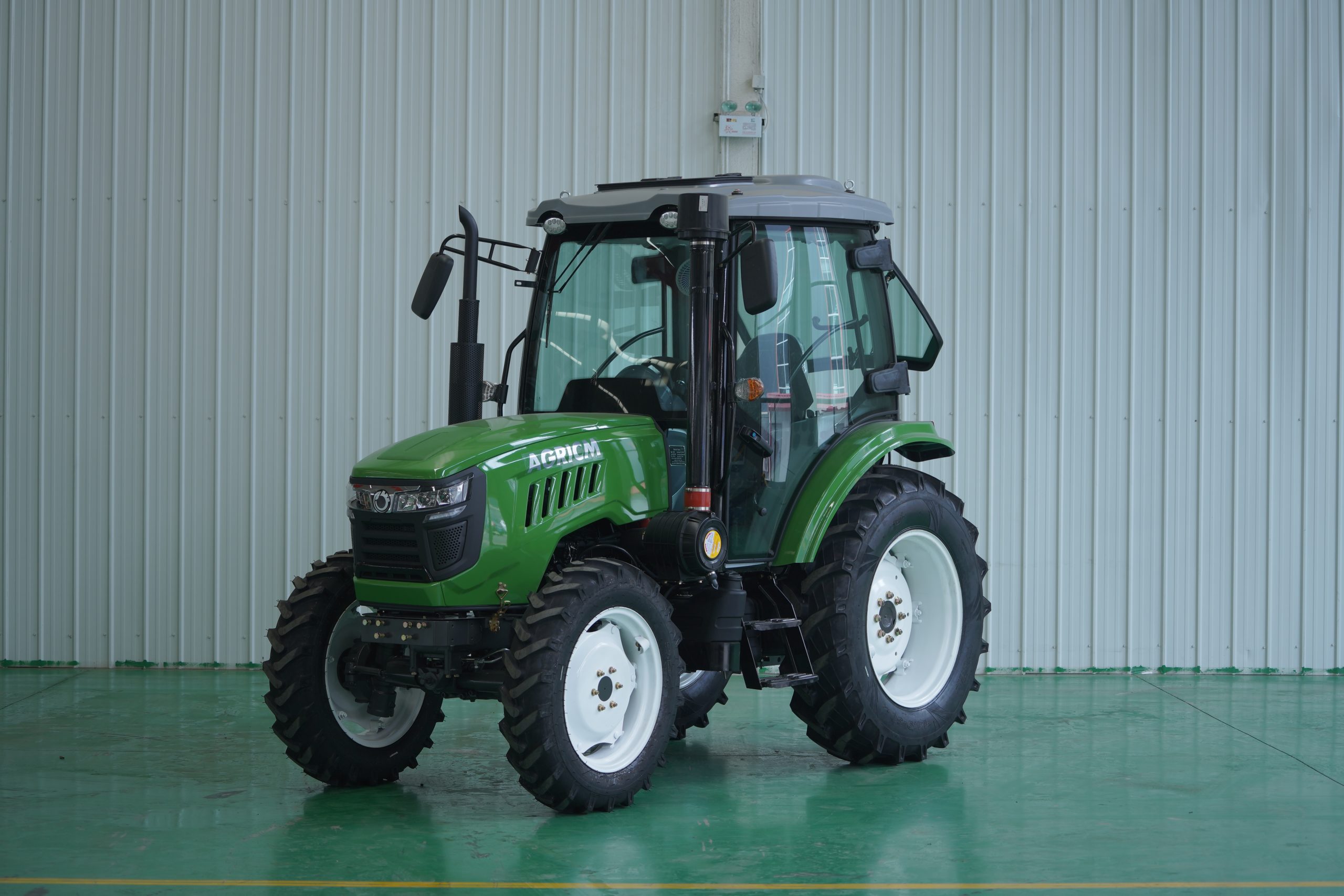

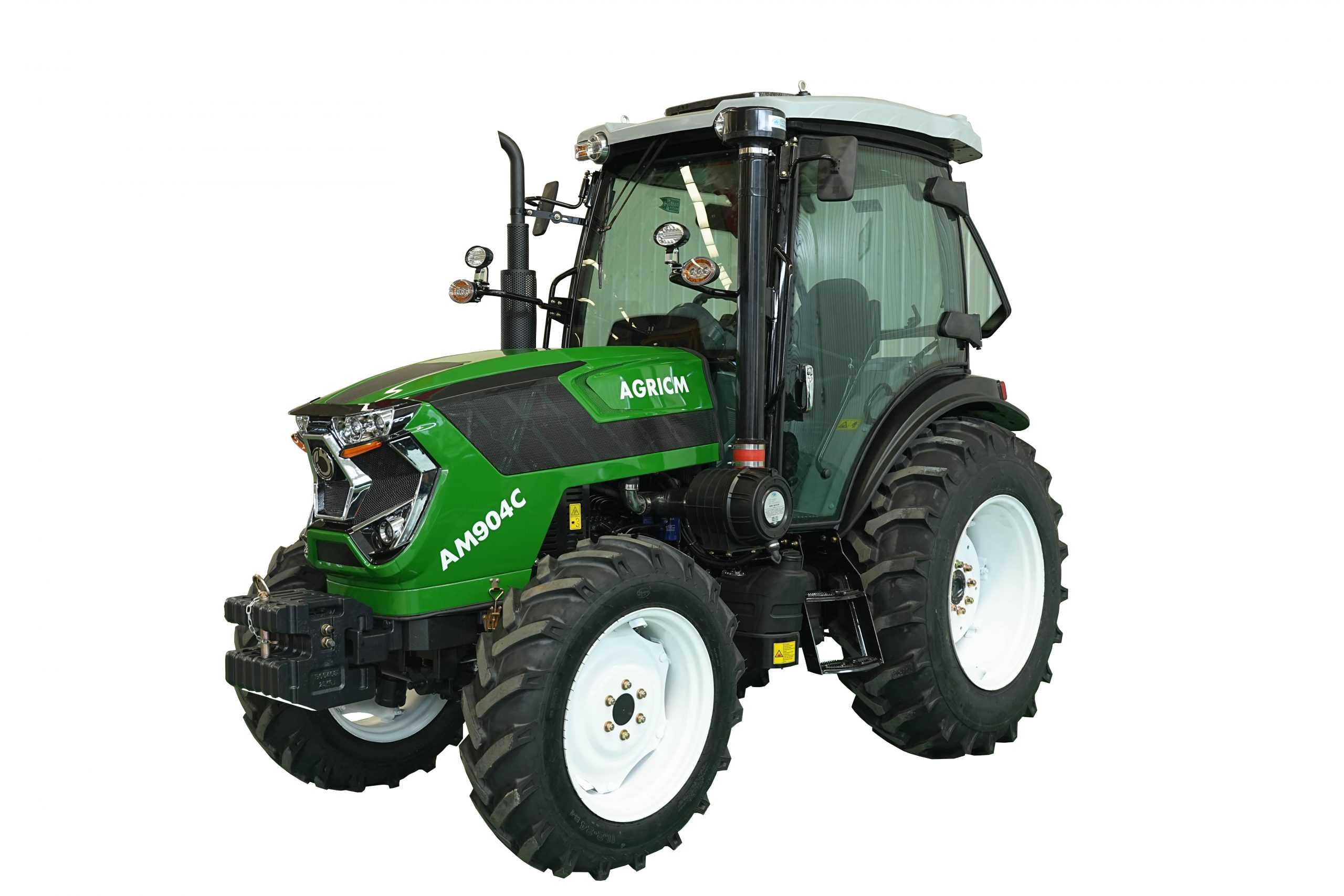

AM 50-90HP

Model: AM504/AM604/AM704/AM804/AM904
Wheel drive: 4*4
Four Cylinder Xinchai engine
Dry and Double clutch
Two groups of output
Gear Shift: 12+12

AM 50-90HP

Model: AM504/AM604/AM704/AM804/AM904
Wheel drive: 4*4
Four Cylinder Xinchai engine
Dry and Double clutch
Two groups of output
Gear Shift: 12+12

AM 50-90HP

Model: AM504/AM604/AM704/AM804/AM904
Wheel drive: 4*4
Four Cylinder Xinchai engine
Dry and Double clutch
Two groups of output
Gear Shift: 12+12

AM 50-90HP

Model: AM504/AM604/AM704/AM804/AM904
Wheel drive: 4*4
Four Cylinder Xinchai engine
Dry and Double clutch
Two groups of output
Gear Shift: 12+12

AM 50-90HP

Model: AM504/AM604/AM704/AM804/AM904
Wheel drive: 4*4
Four Cylinder Xinchai engine
Dry and Double clutch
Two groups of output
Gear Shift: 12+12

PRODUCT DETAILS
SPECIFICATION
Model Unit AM504 AM604 AM704 AM804 AM904
Drive Type / 4*4 4*4 4*4 4*4 4*4
Overall Dimension (L*W*H) mm 4030*1650*2130 4030*1650*2250 4150*1675*2250 4150*1675*2350 4150*1675*2350
Structure Weight Kg 1965 2270 2270 2270 2270
Rated Power Kw 36.8 (50HP) 44 (60HP) 51.5 (70HP) 58.8 (80HP) 66.2 (90HP)
Engine Cylinder Quantity / 4 4 4 4 4
Rated Traction Kn 17.8 17.8 18.0 18.5 18.9
Front Wheel Tread mm 1250 1250 1250 1250 1250
Rear Wheel Tread mm 1200  ~ 1500 1200  ~ 1500 1312,1350,1408,1496 1312,1350,1408,1496 1312,1350,1408,1496
Wheelbase mm 1990 2072 2072 2072 2072
PTO r/min 540/1000 540/1000 540/1000 540/1000 540/1000
Min.Ground clearance mm 365 365 370 400 400
Max.Lifting Force Kn 8.8 10.5 12.4 12.4 12.4
Gear box / 12F+12R 12F+12R 12F+12R 12F+12R 12F+12R
Tire / 8.3-20/124.9-28 8.3-20/14.9-28 9.5-24/14.9-30 9.5-24/16.9-30 9.5-24/16.9-30
Features

Strong power and high reliability
1. Premium with strong power, high reliability and good fuel economy;
2. Enhanced LUK 11-inch independently operated double-acting clutch with large torque reserve and high reliability;
3. Optimized design of chassis transmission system, reliability is strengthened, the drive half-shaft is thickened, and the bearing capacity is increased by 20%.

Comfortable ride and easy operation
1. A new generation of streamlined hood, using composite materials which is durable, no rust, no color fading, beautiful styling, wide field of vision, ventilation and heat dissipation;
2. Optimized design of pedal shift manipulation with light and comfortable operation;
3. Ergonomically designed cab, equipped with cooling and heating air conditioning, good sealing, dustproof, noise reduction and heat insulation; new four-pillar air-conditioned cab is dustproof, noise reduction and heat insulation, with angle-adjustable steering wheel, suspension seat, more comfortable ride, and air conditioning is selected from the top-mounted program, with better refrigeration effect.

Reliable performance and high operating efficiency
1. Two-speed power output supports a wide range of Implement, to meet a variety of operational needs;
2. Double cylinders strong pressure lifter with bigger lifting force and better working effect;
3. The rear wheelbase is stepless adjustable to meet various agronomic needs;
4. Two sets of hydraulic output, to meet the folding poop, turning plow and other implements operating needs with wider adaptability.
